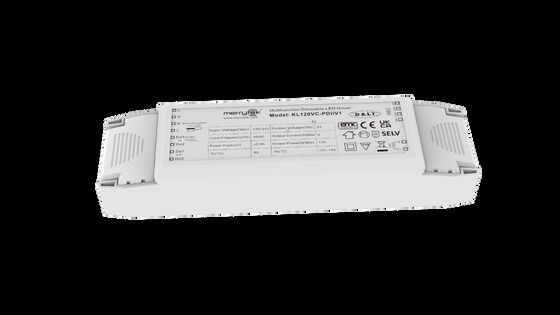

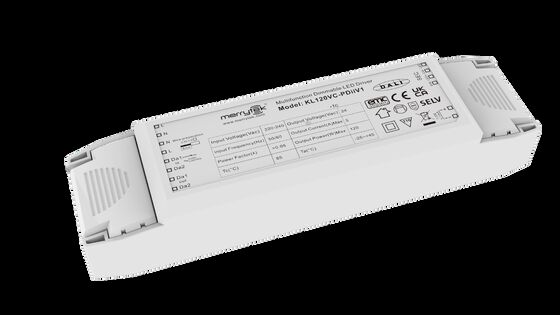

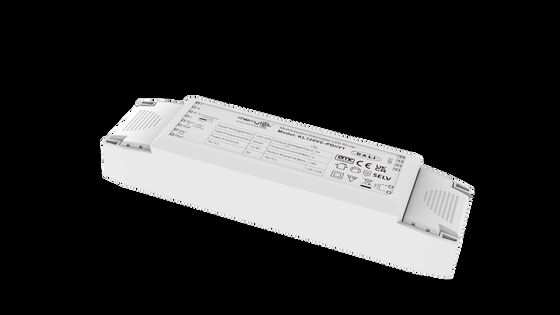

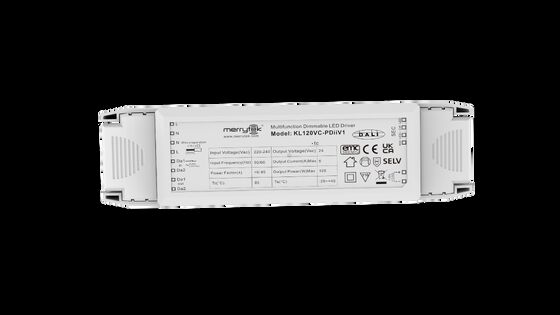

120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty

  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
Herkunftsort China
Markenname Merrytek
Zertifizierung CE
Modellnummer KL120VC-PDiiV1
Min Bestellmenge 100
Preis Verhandlungsfähig
Verpackung Informationen Weiße Schachtel + Karton, 50 Stück/CTN
Lieferzeit 1, Beispiel und kleine Bestellung: Innerhalb von 5 Arbeitstagen nach Erhalt Ihrer Zahlung. 2, Massen
Zahlungsbedingungen T/T oder Paypal
Versorgungsmaterial-Fähigkeit 10,000pcs pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Nenneingangsspannung 220-240Vac 50Hz /60Hz Gleichstrom-Eingangspannungsbereich 200 bis 240 Vdc
Betriebsart DALI2 DT8 & PUSH & 1-10V Dimmen Kontrollmethode 24V DALI DT8 dimmbarer LED-Treiber
Leistungsfaktor ≥ 099 Effizienz 92%
Konstante Spannung 24VDC Dimension 202x58x30mm
IP-Bewertung IP20 Garantie 5 Jahre
Hervorheben

24V DALI DT8 dimmable LED driver

,

120W constant voltage LED driver

,

DALI2.0 dimmable driver with warranty
Hinterlass eine Nachricht
Produkt-Beschreibung
120W Constant Voltage 24V DALI DT8 Dimmable LED Driver
High-performance 120W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.
Key Features
  • Flicker-free performance across entire dimming range
  • Stand-by power consumption below 0.5W
  • Primary dimming with push button control
  • Secondary dimming with 0-10V dimmer and potentiometer
  • Built-in DALI interface DT8 compatibility
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Comprehensive protection: short circuit, over temperature, over voltage
  • Current derating for high ambient temperature operation
  • Push dim with memory function
  • 5-year manufacturer warranty
Technical Parameters
Series KL120VC-PDiiV1
Input Specifications
Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current (@230Vac) 0.6A Max
Inrush Current 30A (Half current pulse width 100US) @230VAC
Power factor ≥ 0.99 (@230Vac,100% load)
Total harmonic distortion Typical: 6% (@230Vac, 100% load)
Stand-by power ≤0.3W
Efficiency(230Vac,100% load) 92%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm²
Output Specifications
Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Forward voltage 24V
Output current 5A
Max. output voltage (no-load) 30V
Full load output power 120W Max.
Minimum load 12W
Output current/voltage tolerance ±5%
Wiring method Screw terminal, wire cross section:2*0.5-2.5mm²
Dimensions
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 0
Wiring Diagrams
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 1
DALI Dimming
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 2
Push Dimming
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 3
Operation Instructions
  • ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
  • Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
  • Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
  • Memory function: Remembers the last dimming setting
  • DALI dimming: Connect to DALI system for 0-100% dimming control
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
