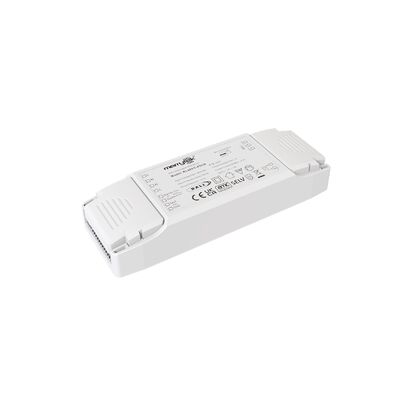

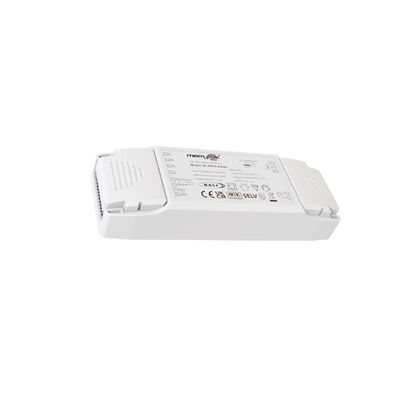

40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty

  • 40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty
  • 40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty
Herkunftsort China
Markenname Merrytek
Zertifizierung CE
Modellnummer KL40VC-PDiiV
Min Bestellmenge 100
Preis Verhandlungsfähig
Verpackung Informationen Weiße Schachtel + Karton, 50 Stück/CTN
Lieferzeit 1, Beispiel und kleine Bestellung: Innerhalb von 5 Arbeitstagen nach Erhalt Ihrer Zahlung. 2, Massen
Zahlungsbedingungen T/T oder Paypal
Versorgungsmaterial-Fähigkeit 10,000pcs pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Nenneingangsspannung 220-240Vac 50Hz /60Hz Gleichstrom-Eingangspannungsbereich 200 bis 240 Vdc
Betriebsart Konstantspannungs-LED-Treiber 12V Kontrollmethode DALI2, PUSH, 0-10Vdc
Leistungsfaktor ≥0,95 Effizienz 87%
Konstante Spannung 12VDC Dimension 150x52x28mm
IP-Bewertung IP20 Garantie 5 Jahre
Hervorheben

40W DALI dimmable LED driver

,

12V constant voltage LED driver

,

DT8 LED strip driver with warranty
Hinterlass eine Nachricht
Produkt-Beschreibung
40W Constant Voltage LED Driver 12V DALI DT8 LED Strip Dimmable Driver with 5-Year Warranty
High-performance 40W constant voltage LED driver with advanced dimming capabilities and comprehensive protection features.
Product Features
  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • Secondary dimming with a 0-10V dimmer and a potentiometer
  • Built-in DALI interface DT8
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for high ambient temperature
  • Push dim with memory function
  • 5-year warranty
Technical Parameters
Series Name KL40VC-PDiiV
Input Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current 0.21A Max.@230Vac
Inrush Current 15A (Half current pulse width 100US) @230VAC
Power factor ＞ 0.95 (@230Vac,100% load)
Total harmonic distortion Typical: 16% (@230Vac, 100% load)
Stand-by power ≤0.5W
Efficiency(@230Vac,100% load) 87%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm²
Loop-in&Loop-out quantity 30PCS(@230Vac)
Automatic circuit breaker See detailed table for type/number combinations
Output Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Load output voltage range 12V CV
Load output current 3.33A Max.
Dimensions
40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty 0
Wiring Diagrams
40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty 1
Operation Instructions
  • Short-press the PUSH switch (0.1S-1S) to turn on/off
  • Press and hold (1S-8S) for dimming (2-100% range)
  • Color temperature adjustment: Turn off lights, then press/hold to adjust from current brightness
  • Memory function: Remembers last dimming setting
  • Dimming synchronization: Up to 15 parallel or 25 series units
  • DALI dimming: 0-100% range when connected to DALI system
Note: All parameters are tested at 230VAC input and 25°C unless specified otherwise.
