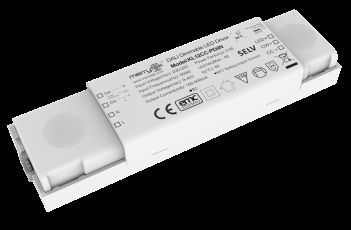

12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver

  • 12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver
Herkunftsort CHINA
Markenname Merrytek
Zertifizierung CE
Modellnummer KL12CC-Pdiin
Min Bestellmenge 100
Preis Verhandlungsfähig
Verpackung Informationen Weiße Schachtel + Karton, 50 Stück/CTN
Lieferzeit 1, Beispiel und kleine Bestellung: Innerhalb von 5 Arbeitstagen nach Erhalt Ihrer Zahlung. 2, Massen
Zahlungsbedingungen T/T oder Paypal
Versorgungsmaterial-Fähigkeit 10,000pcs pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Nennspannung 220-240Vac 50Hz /60Hz Gleichstrom-Eingangspannungsbereich 200 bis 240 Vdc
Betriebsart 12W NFC Programmierbares LED -Treiber Kontrollmethode DALI2 Dimmen & PUSH Dimmen
Leistungsfaktor ≥ 0,9 °C Effizienz 82%
Aktuell 100-500 mA Dimension 130x35x21mm
IP -Bewertung IP20 Garantie 5 Jahre
Hervorheben

12W DALI DT8 LED driver

,

Dimmable LED driver 100ma to 500ma

,

NFC programmable DALI2.0 driver
Hinterlass eine Nachricht
Produkt-Beschreibung
12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver
Product Description

High-performance 12W DALI DT8 dimmable LED driver with NFC programming capability, designed for professional lighting applications.

Key Features
  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • NFC technology for wireless programming
  • Built-in DALI interface DT8
  • CLO compensation
  • Centrally-supplied DC emergency operation DT19
  • Primary dimming with push button; with memory function
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for high ambient temperature
  • Quick wiring, convenient, and time-saving
  • 5-year warranty
Technical Parameters
Input Specifications
Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.13A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load) ≥ 0.9C
Total harmonic distortion Typical:15% (@230Vac, 100% load)
Stand-by power ≤0.5W (@230Vac when DALI turns off)
Efficiency(@230Vac,100% load) 82%
Wiring Method 0.75-1.5mm²
Output Specifications
Operating mode Constant Current
Load type LED
Ripple requirement Flicker value: less than 5% for the whole dimming range
Start-up time <1s (@230Vac); <0.5s (@200Vdc)
No-load output voltage 48V DC Max.
Load output voltage range 9-42V DC
Full load output power 12W
Load output current 100-500mA
Constant current/voltage Precision Constant Current Precision ±5%
Dimensions
12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver 0
Wiring Diagrams
12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver 1
Fig A: DALI Dimming
12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver 2 12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver 3
Fig B: PUSH Dimming
Current Gear Settings
Current(mA) Pomax(W) Uout(V)
100 4.2 9～42
150 6.3 9～42
200 8.4 9～42
250 10.5 9～42
300 12.0 9～40
350 11.9 9～34
400 12.0 9～30
450 12.2 9～27
500 12.0 9～24

The typical current data sets are for reference when selecting LED fixture models. More current levels can be set by NFC using a mobile APP adjustable in 1mA steps.

Operation Instructions
  • ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
  • Dimming: Press and hold PUSH switch (1s-8s) for dimming (2-100%)
  • Color temperature adjustment: Turn off lights, then press/hold PUSH to adjust
  • Memory: PUSH dimming has memory function
  • Synchronization: Press/hold PUSH >15s for synchronization
  • DALI dimming: Connect to DALI system for 0-100% dimming
Important Notes
  • Always connect LED string before powering on to prevent damage
  • Output maintains residual voltage for ~3 minutes after power off
  • Ensure driver is powered off before NFC parameter setting
