30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height
| Herkunftsort | China |
|---|---|
| Markenname | Merrytek |
| Zertifizierung | CE |
| Modellnummer | MSA069S IR |
| Min Bestellmenge | 100 Stück |
| Preis | Verhandlungsfähig |
| Verpackung Informationen | Weiße Schachtel+ Weiße Schachtel-Tags+ Klapboard+ Karton(K=A) |
| Lieferzeit | 1, Beispiel und kleine Bestellung: Innerhalb von 5 Arbeitstagen nach Erhalt Ihrer Zahlung. 2, Massen |
| Zahlungsbedingungen | T/T |
| Versorgungsmaterial-Fähigkeit | 10,000pcs pro Monat |
Produktdetails
| Eingangsspannung | 220–240 VAC, 50/60 Hz | Arbeitsstrom | 20mA max. |
|---|---|---|---|
| Stromverbrauch | ≤0,5W | Funktion | EIN/AUS Erkennungsbereich von 30 m Durchmesser |
| Verfügbar | Bewegungserkennung, Tageslichtsensor | Montagehöhe | 2,5-6m |
| Installation | Unterputz- und Aufputzmontage | Schnittgröße | Φ55 mm |
| Hervorheben | 30m PIR presence detector,standalone PIR motion sensor,6m mounting height motion detector |
||
Produkt-Beschreibung

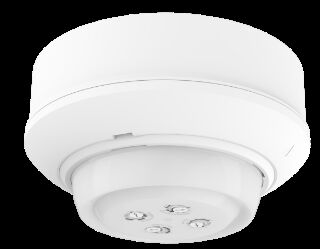

30m Diameter Detection Coverage Standalone PIR Presence Detector
Advanced standalone PIR presence detector with 30m diameter detection coverage and 6m mounting height capability.
Key Features
- PIR motion detection technology
- Accurate motion detection with ON/OFF output channel
- Integrated daylight sensor detection
- Configurable detection area, hold time, and daylight threshold via rotation switch or remote control
- Maximum detection range: 30-36m diameter
- 26A relay with 2000W resistive and 1200W inductive loading capacity
- PUSH button control functionality
- Semi-auto and auto sensing modes
- IQ intelligent mode for automatic hold time adjustment
- Sync control for multi-sensor coordination

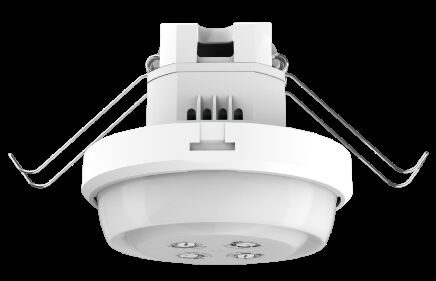

- Flush mounting and surface mounting options
Technical Specifications
Input/Output Parameters
| Input voltage | 220-240V AC |
| Rated voltage | 230V AC |
| Working current | 20mA max |
| Power consumption | ≤0.5W @230V AC |
| Output signal | ON/OFF |
| Max surge voltage | 2KV(L/N, EN61000-4-5) |
| Max surge current | 75A (50% Ipeak, twidth =500us, 230Vac full load, cold start) |
| Max loading | 2000W resistive loading and 1200W inductive loading @230Vac |
Sensor Parameters
| Function | PIR motion detection + daylight sensor |
| Detection Area | Rotation switch/MH18 remote/MH10 remote setting: 100%/75%/50%/25% |
| Hold Time | Rotation switch/MH18 remote/MH10 remote setting: Test 2s/30s/1min/5min/10min/30min |
| Daylight Sensor | Rotation switch/MH18 remote/MH10 remote setting: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable |
| Radius detection range | 15-18m @25℃ based on 3m mounting height and tangential motion |
| Remote control | Available (MH18 remote/MH10 remote) |
| Mounting heights | 2.5-6m (typical value: 3m) |
Advanced Features
Daylight Threshold Learning Mode: Automatically learns current environment daylight level and sets it as threshold.
IQ Mode: Automatically adjusts hold time based on sensor trigger frequency (10s-10min range).
Pulse Mode: Keeps on for 2s and blocks sensing for 8s when motion detected.
PUSH Button Control: Supports auto and semi-auto modes with manual override capability.
Sync Control: Enables group control of multiple sensors for coordinated lighting control.
Application Environment
| Drill hole | Φ55mm |
| Working temperature | -25℃ to +50℃ (detection range varies with temperature) |
| Storage temperature | -25℃ to +50℃, humidity ≤60% (non-condensation) |
| Wiring standard | Wire diameter: 0.2-2.5mm², Wire stripping length: 5-8mm |
| Warranty | 5 years (indoor application) |
Certifications & Standards
| Certificate | Compliant with CE |
| Environmental requirements | Compliant with RoHS |
| IP rating | IP20 |
"N/A" means not available
Product Dimensions
Wiring Diagram
Detection Radiation Pattern
Rotation Switch Settings
Detection Area Settings
| Gear | Detection Area |
|---|---|
| 1 | 25% |
| 2 | 50% |
| 3 | 75% |
| 4 | 100% |
Hold Time Settings
| Gear | Hold Time |
|---|---|
| 1 | Test 2s |
| 2 | 30s |
| 3 | 1min |
| 4 | 5min |
| 5 | 10min |
| 6 | 30min |
| 7 | Pulse mode |
| 8 | IQ mode |
Daylight Sensor Settings
| Gear | Daylight Threshold |
|---|---|
| 1 | 5lux |
| 2 | 15lux |
| 3 | 30lux |
| 4 | 50lux |
| 5 | 100lux |
| 6 | 150lux |
| 7 | Disable |
Daylight Priority Settings
| Gear | Daylight Priority Gear |
|---|---|
| 1 | 30lux ON/200lux OFF |
| 2 | 50lux ON/300lux OFF |
| 3 | 100lux ON/400lux OFF |
| 4 | 150lux ON/500lux OFF |
| 5 | Disable |
Remote Control Options
Installation Guidelines
- Installation must be performed by a professional electrician in a power-off state
- Typical installation height is 3m for indoor use only. Avoid installation near hot or rapidly changing temperature areas to prevent false triggers
- Ensure no large objects within detection area as sensor cannot detect through objects
- Avoid placement near strong-reflective objects, wifi routers, microwave ovens, etc., to prevent false triggers
- Detection area function is based on 25℃ environment temperature. Performance varies with temperature changes
- Detection area function is optimized for tangential movement; radial movement detection range is shorter due to PIR characteristics
