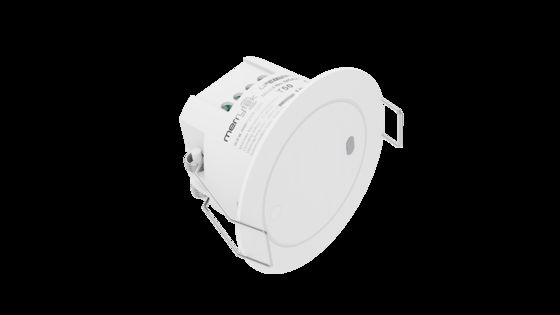

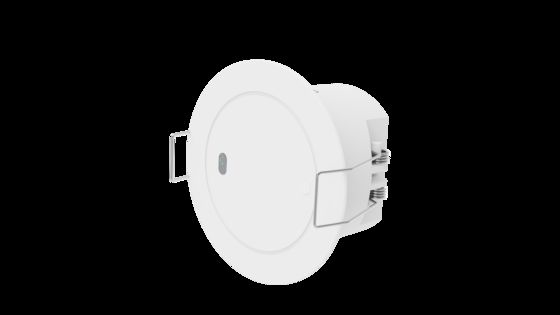

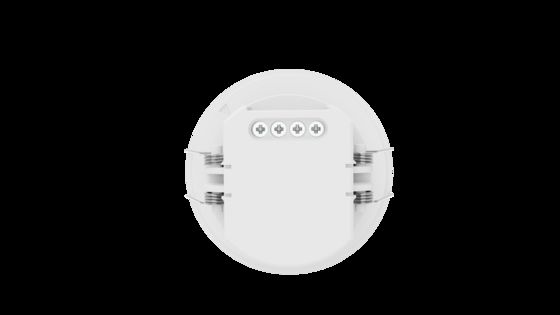

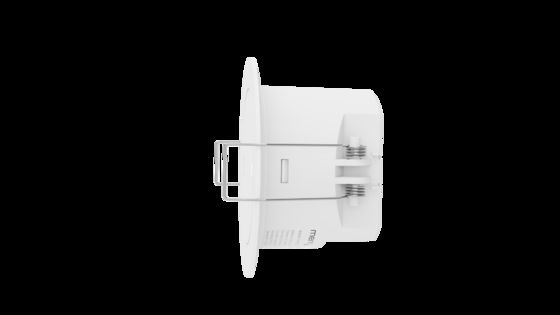

Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact
| Herkunftsort | Shenzhen, China |
|---|---|
| Markenname | Merrytek |
| Zertifizierung | CE |
| Modellnummer | MSA237d 99 |
| Min Bestellmenge | 100pcs |
| Preis | Verhandlungsfähig |
| Verpackung Informationen | Weiße Schachtel+ Weiße Schachtel-Tags+ Klapboard+ Karton(K=A) |
| Lieferzeit | 1, Beispiel und kleine Bestellung: Innerhalb von 5 Arbeitstagen nach Erhalt Ihrer Zahlung. 2, Massen |
| Zahlungsbedingungen | T/t |
| Versorgungsmaterial-Fähigkeit | 10000 PCs/Monat |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
WECHAT: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Arbeitsspannung | 12-24VDC | Arbeitsmodus | Ein potenzieller trockener Kontakt |
|---|---|---|---|
| Montagehöhe | 20,5-4,0 m | Lebensdauer | 5 Jahre Garantie@Ta 230V Volllast |
| Arbeitskraft | ≤ 1,2 W | Arbeitsfrequenz | 24 GHz ± 24,25 GHz |
| Detektionsart | Erkennung von Major/Moll/Mikrobewegung | Montage | Ebene Montage |
| Hervorheben | 12-24Vdc occupancy detector,potential-free dry contact sensor,Merrytek presence detector with warranty |
||
Produkt-Beschreibung
Merrytek 4th Generation 12-24Vdc Input Occupancy Detector with One Potential-Free Dry Contact
Product Attributes
| Attribute | Value |
|---|---|
| Working voltage | 12-24Vdc |
| Working mode | One potential-free dry contact |
| Mounting height | 2.5-4.0m |
| Life time | 5 years warranty@Ta 230V full load |
| Working Power | ≤1.2W |
| Working frequency | 24GHz ±24.25GHz |
| Detecting type | Major/Minor/Micro Motion detection |
| Mounting | Flush mounting |
Parameters
| Input/Output | Specification |
|---|---|
| Input voltage | 12-24V DC |
| Rated voltage | 24V DC |
| Working Current | @12Vdc:80±3mA @24Vdc:42±3mA |
| Working Power | ≤1.2W @24V DC |
| Output signal | NO/NC/Pulse dry contact (Factory setting is NO dry contact) |
| Load type | Resistive (load voltage :Vdc≤36V,load current:100mA max) |
| Sensor Parameter | Specification |
|---|---|
| Radar frequency | 24GHz -24.25GHz, ISM band |
| Transmitting Power | 5mW Max. |
| Detection Area | 0-4m(setting by merrytek mini program) |
| Hold Time | 3-7200s (setting by Merrytek mini program) |
| Daylight threshold | 5-2000Lux(setting by merrytek mini program) |
| Daylight sensor range | 0-2000Lux |
| Radius detection range | 4±0.5m(based on 41㎡ open area test) |
| Sensitivity | high/medium/low |
| Remote control | Available(MH18) |
| Merrytek mini program | Available |
| Mounting height | 2.5-4.0m (typical value: 3m) |
| Detecting Angle | 120° |
| Application Environment | Specification |
|---|---|
| Drill hole | Φ50-55mm |
| Working Temperature | 0℃...+50℃ |
| Storage Temperature | -25℃~+80℃ Humidity:≤85% (non-condensation) |
| Certificate Standard | Specification |
|---|---|
| Certificate | FCC/RED |
| Environmental Requirement | Compliant with RoHS |
| IP Rating | IP20 |
| Guarantee | 5 year(only for product quality problem) |
Product Function
Dimension
Wiring
Wiring Layout Suggestion
- Hand-in-hand wiring is highly recommended, yet star-topology or tree-topology is strongly deprecated
- When there's more than 1pc sensor in a line, you shall consider that all equipment current consumption shall not surpass your driver's loading capacity
Detection
Initialization
When powered on, the sensor indicator will turn off after flashing for 10 seconds and will enter a 20S detection cycle. If presence is detected, the sensor will report presence and enter hold time calculation; if absence is detected, then the sensor will report absence. During initialization, the sensor will not detect a moving signal, and you can use our MH18 remote to adjust detection area, hold time, daylight sensor, etc, parameters.
Installation Instructions
Embedded mounting installation
- Trepanning a 50-55mm hole
- Securely wire the cable into the terminal
- Press the program button
- Put the spring clip into the hole and fasten it well
- Ensure the sensor is firmly installed
Factory Default Setting
Detection Area: 4m Hold Time: 30S Indicator Light: open Sensitivity: medium sensitivity
Remote Control MH18
