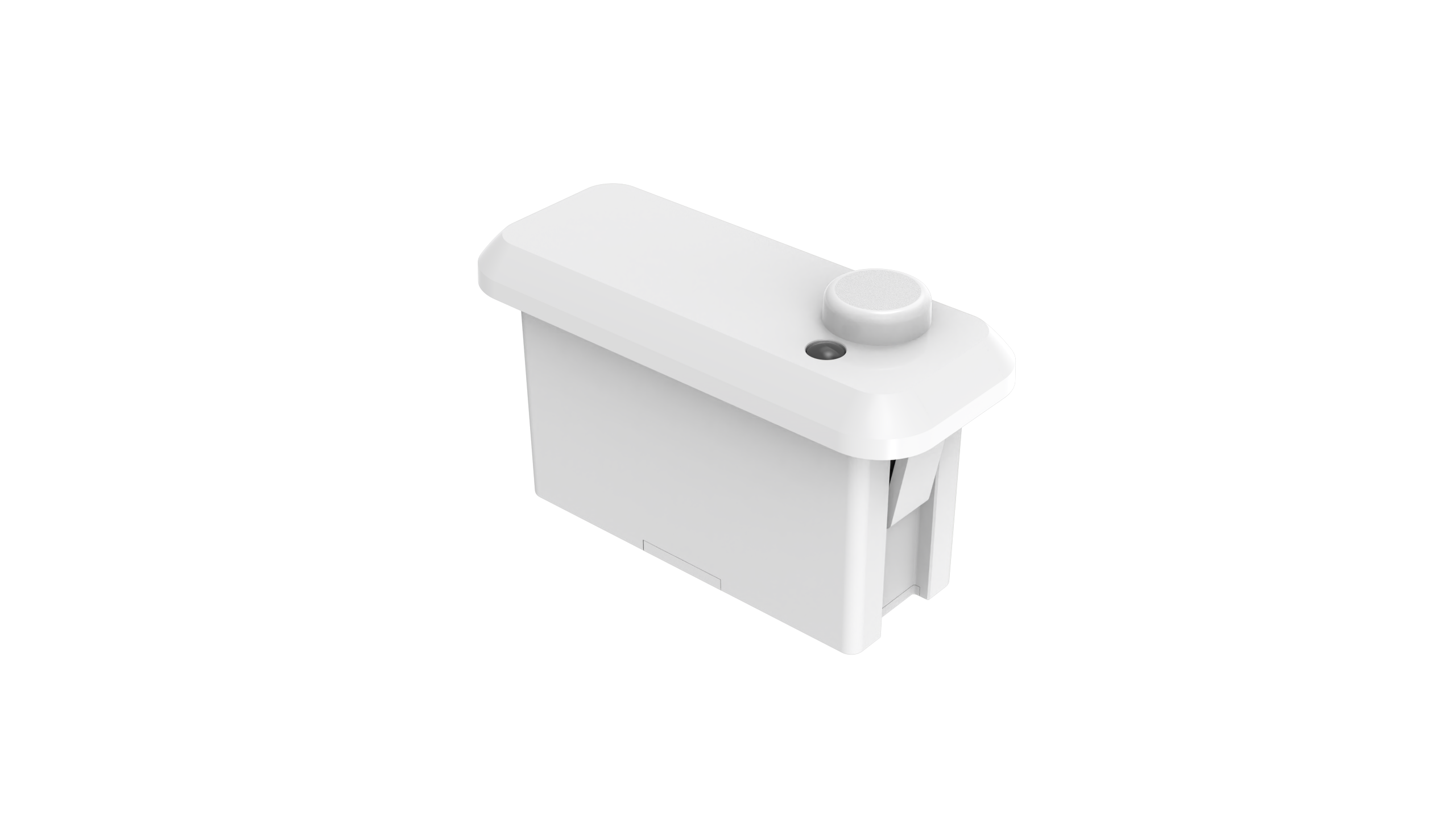

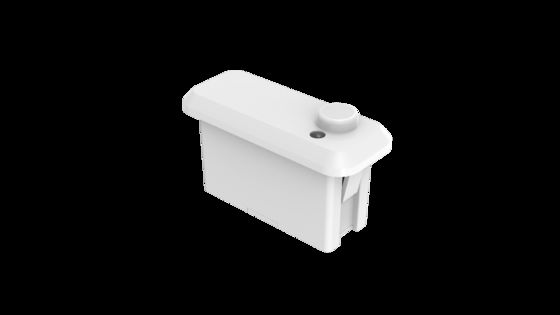

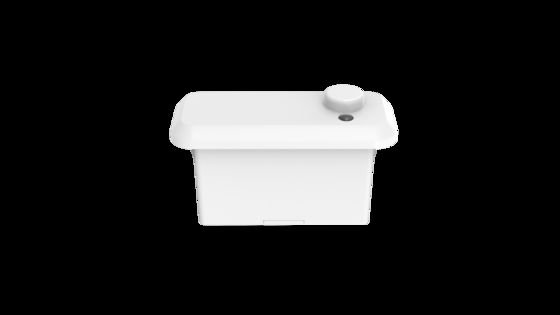

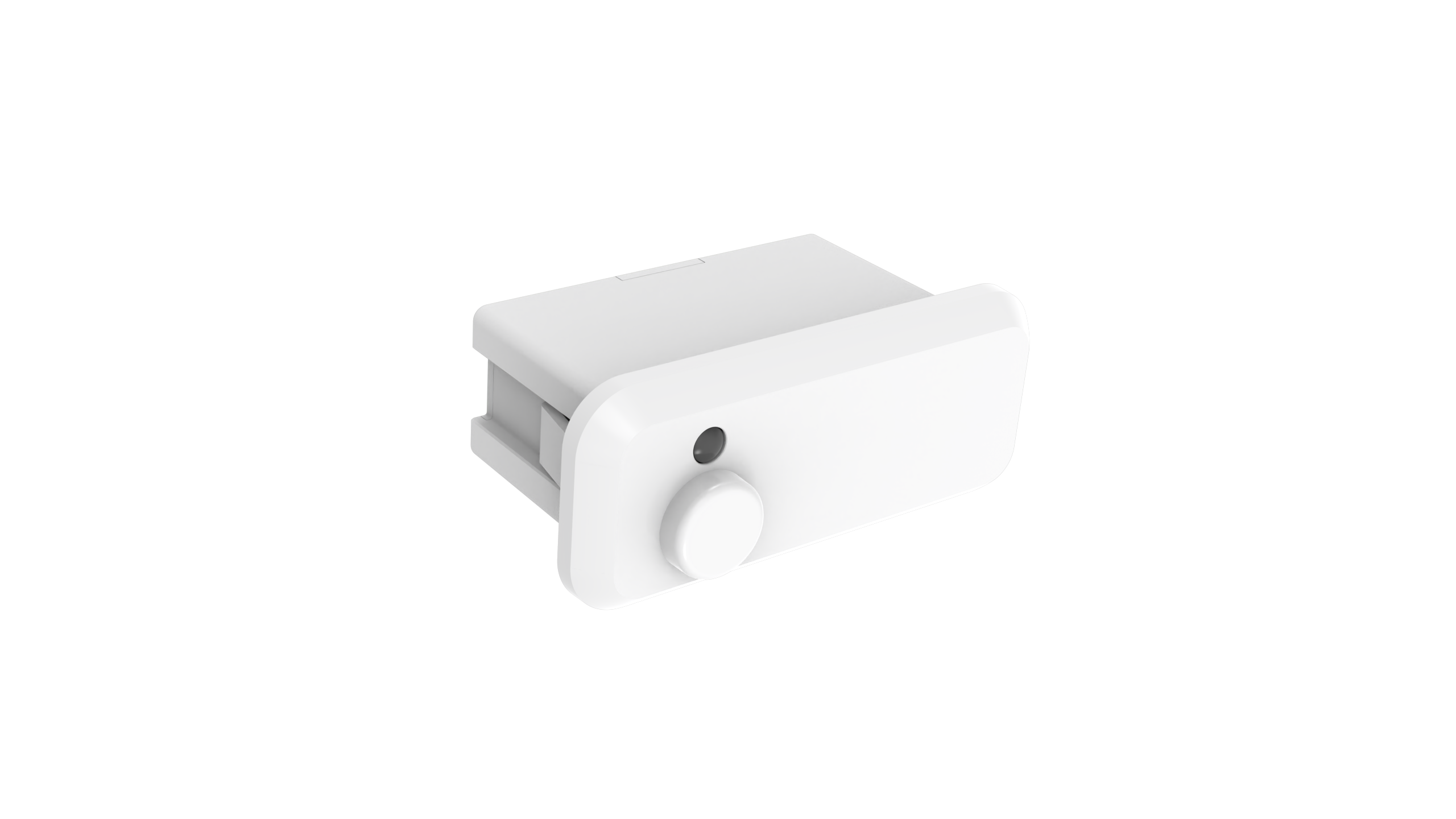

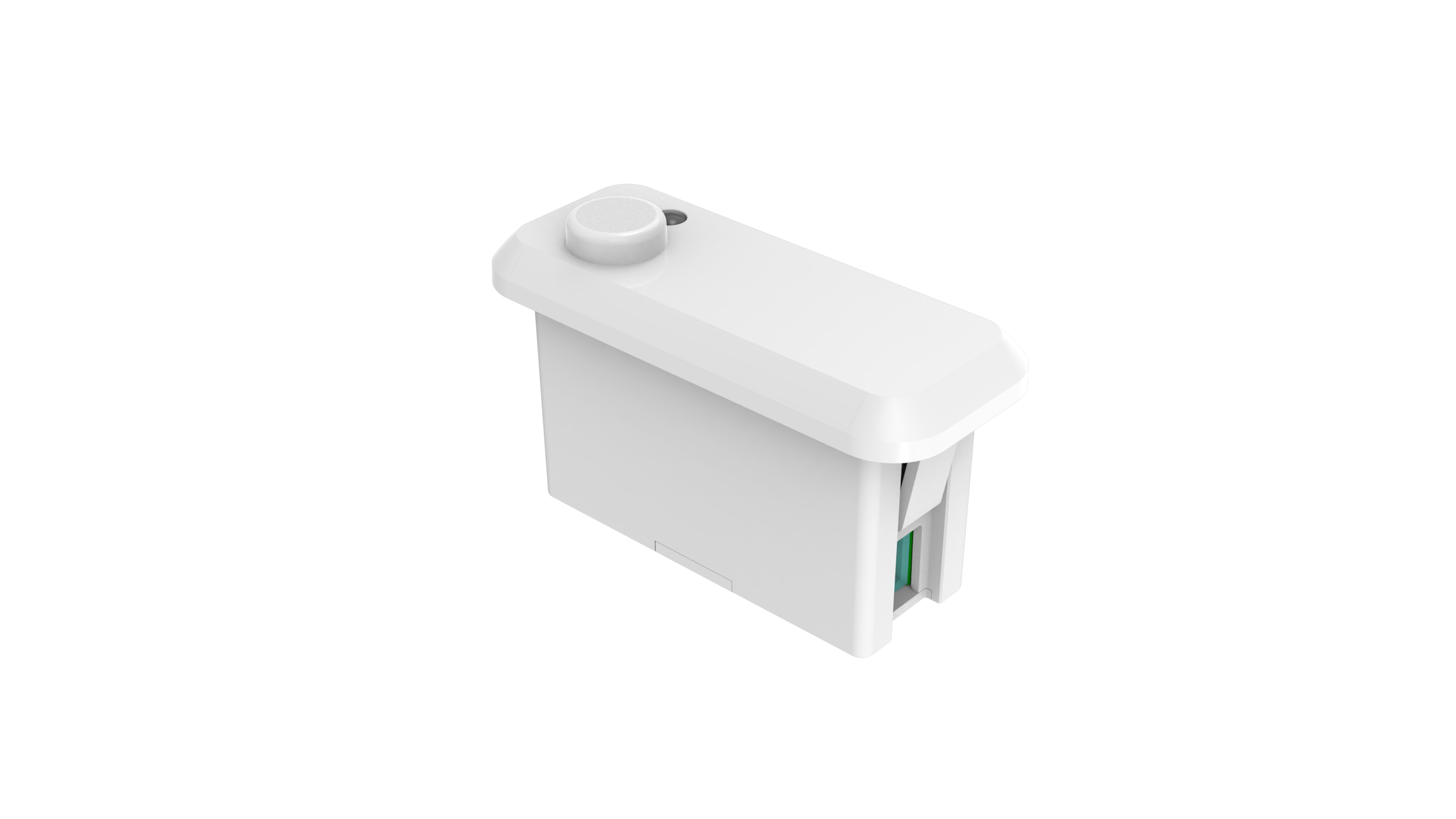

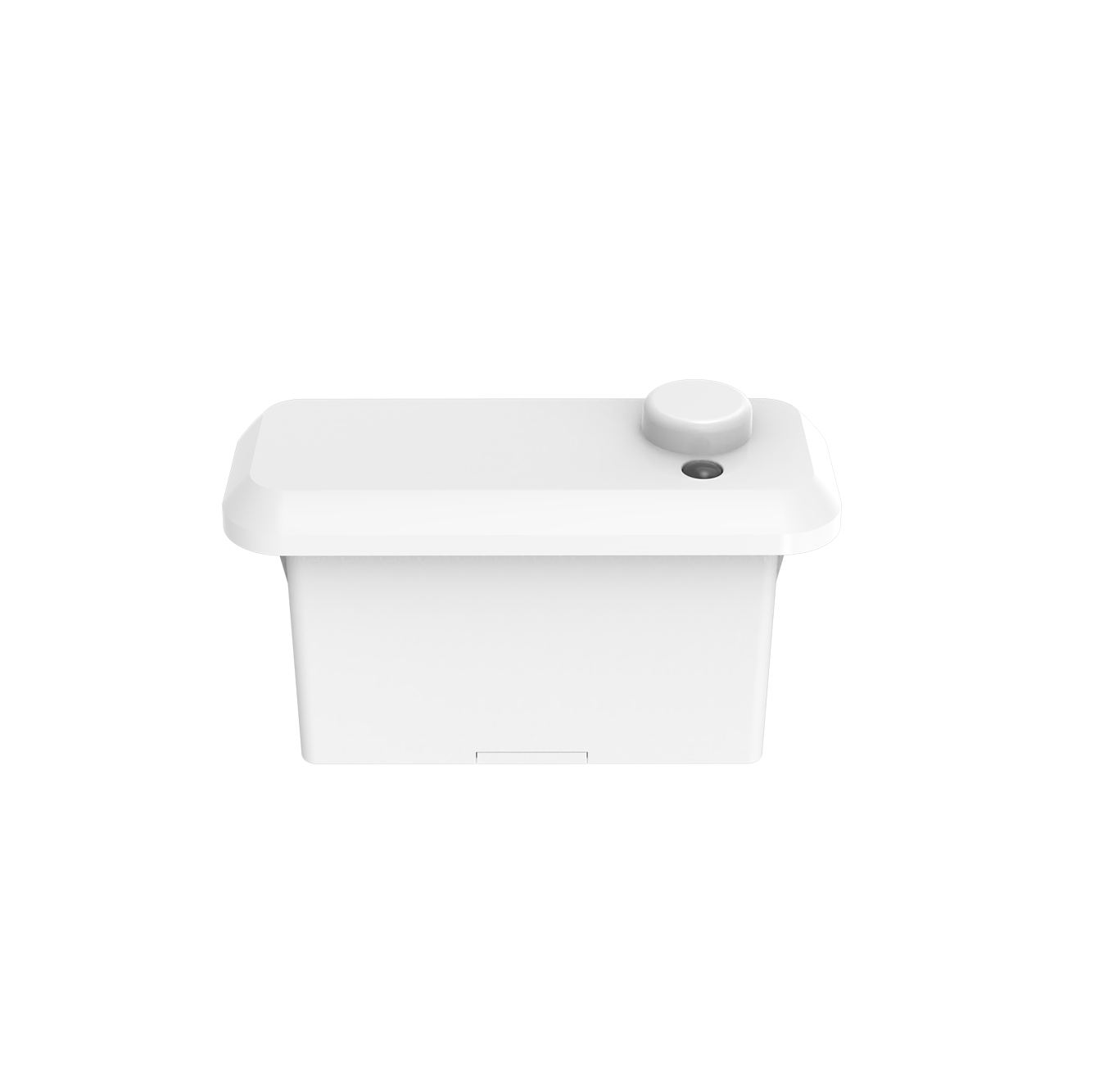

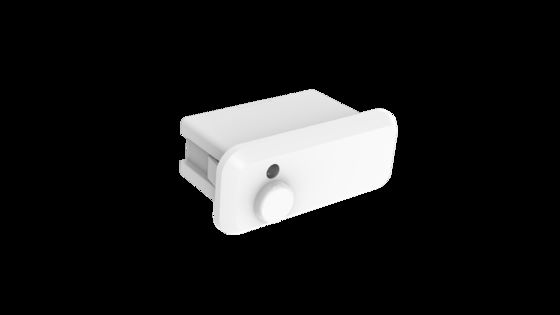

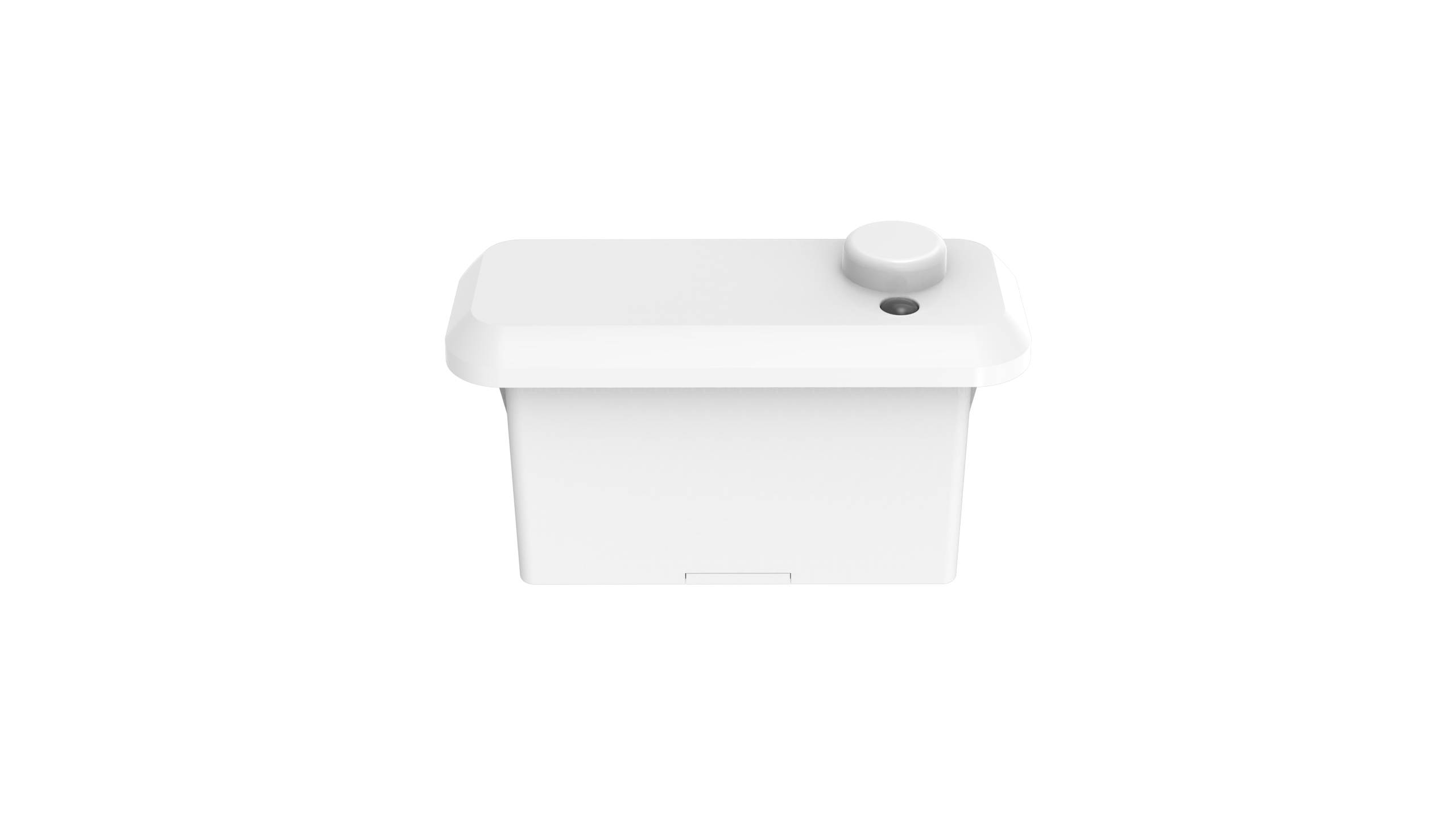

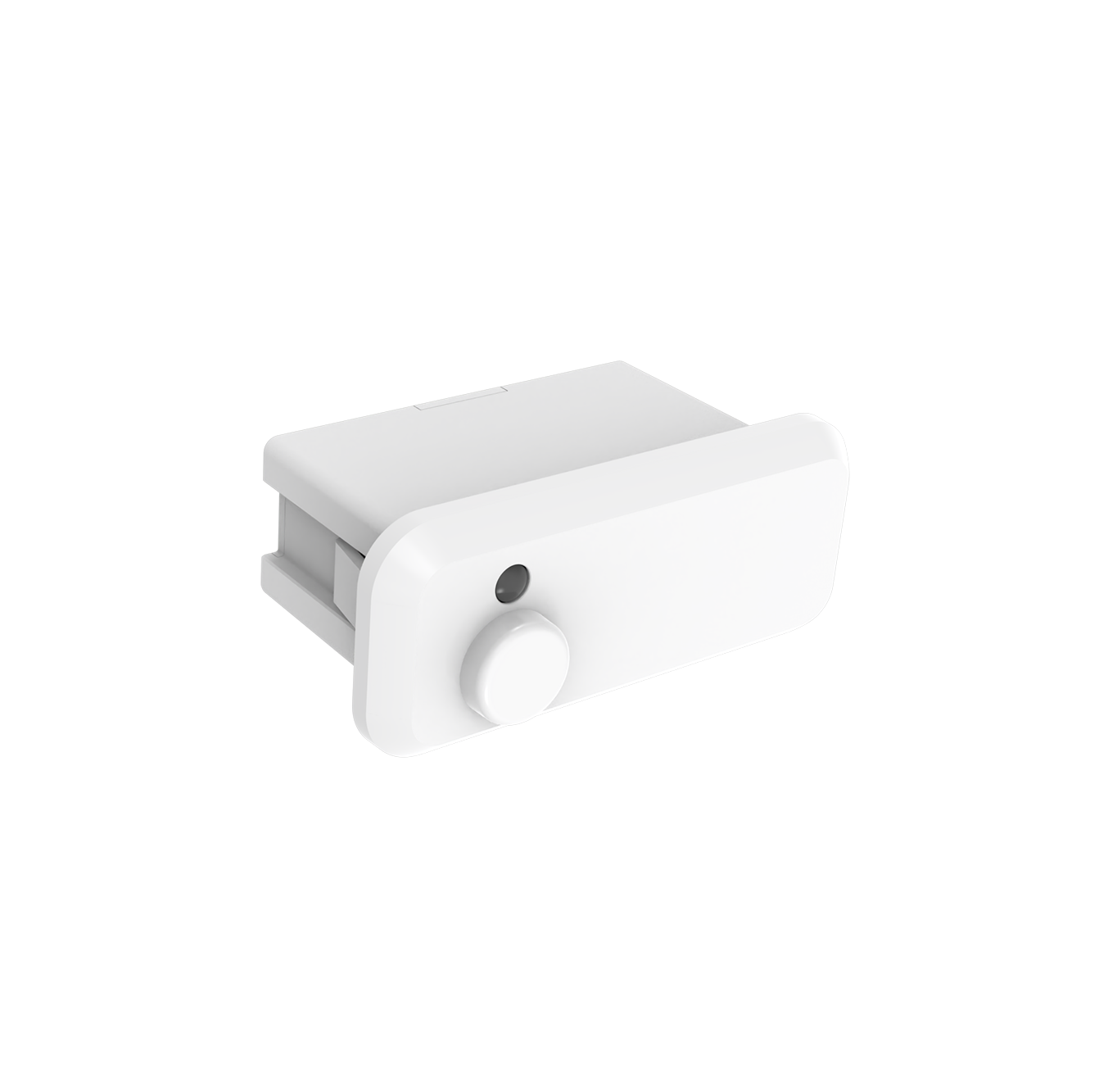

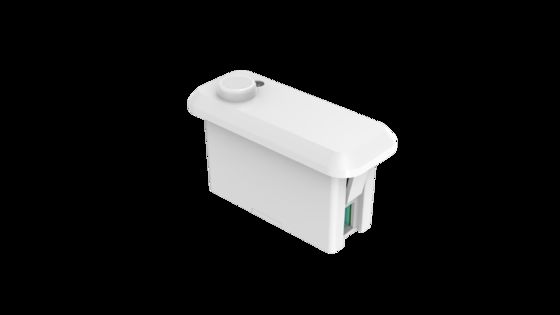

2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface

  • 2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface
  • 2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface
  • 2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface
  • 2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface
  • 2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface
  • 2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface
Herkunftsort Shenzhen, China
Markenname Merrytek
Zertifizierung CE
Modellnummer MC182d 99 1 B
Min Bestellmenge 100pcs
Preis Verhandlungsfähig
Verpackung Informationen Klapboard + Karton (k = a)
Lieferzeit 1, Beispiel und kleine Bestellung: Innerhalb von 5 Arbeitstagen nach Erhalt Ihrer Zahlung. 2, Massen
Zahlungsbedingungen T/t
Versorgungsmaterial-Fähigkeit 10000 PCs/Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Betriebsspannung 12 ± 1VDC Betriebsstrom 60 ± 5 mA
Ausgangssignal PWM -Dimmsignal Montagehöhe 3 m (4m max)
Betriebstemperatur -25℃-55℃ Zertifikat Ce
Lebensdauer 5 Jahre Garantie @TA (Innenräume)
Hervorheben

2.4G wireless motion sensor

,

PIR motion sensor with PWM dimming

,

Zhaga book20 motion sensor
Hinterlass eine Nachricht
Produkt-Beschreibung
2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface
Product Features
  • Built-in installation presence sensor, standard zhaga20 interface
  • Adopt PIR motion detect technology, support 4m max. installation height
  • 5 years product warranty
  • Motion and daylight sensor function
  • Applicable for office, classroom environments where motion detection required
  • Grouping networking by 2.4G wireless, no need pairing or gateway
  • Output PWM dim, 2-step/3-step dim function
  • All sensor parameters can be set by remote control
Technical Parameters
Input
Rated Voltage 12±1VDC
Working Current 60±5mA
Ripple Voltage <100mVp-p
Output
Output Signal MC182D 99 1 B
PWM dimming signal
Sensor Parameters
Detection mode PIR detection
Detection Area 100% /75%/50%/25%(MH17)；100% / 50%/25%(MH15)
Hold Time 30s/1min/3min/5min/10min/20min/30min(MH17)； 30s/1min/3min(MH15)
Stand-by Period 0s/10s/1min/3min/5min/10min/30min/+∞(MH17); 5min/10min/ +∞(MH15)
Stand-by DIM Level 10%/ 20%/ 30%/ 50% (MH17);10%/ 30%(MH15)
Daylight Sensor Daylight threshold: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/999Lux(Disable)(MH17) 15Lux/50Lux/(Disable)(MH15)(Ambient light diffusing state)
Daylight harvesting: 100L/200L/300L/400L/500L/600L/Disable (MH17press"P"enter daylight harvesting mode)
Detection Range (Radius) Ceiling installation 3m high:0.6~1m/s ≥3m；tangential direction testing Motion and minor motion: r≥2.5m Test condition: 100% sensitivity, 60㎡indoor open space.Ambient temperature 25℃
Installation Height 3m (4m Max)
Wireless Parameters
Operating Frequency 2.400-2.483GHz
Transmitting Power 6dBm
Group One group max nodes 32 Pcs
Transmitting Distance 15m MAX(Point-to-point open area transmission distance)
Environment
Working Temperature (Ta) -25℃-55℃
Storage Temperature -40℃~+80℃ humidity: ≤85% (non-condensing)
Certification Standards
Certification CE
Environmental Requirements Comply with RoHS 2.0, Reach requirements
IP Rating IP20
Protection Class Class II
Others
Wiring 3 pin PH2.0 terminal
Installation Requirements External zhaga book20 installation
Packaging Requirements Clapboard + Carton (K=A)
Net Weight 16±3g
Lifetime 5 years warranty @Ta indoor
Function Description
√ON-OFF function Stand-by Period be set to "0s"
√2-step dimming Stand-by Period be set to "+∞"
√3-step dimming Stand-by Period be set to "10s/1min/3min/5min/10min/30min"
√Daylight harvesting Stand-by Period be set to "510s/1min/3min/5min/10min/30min"
Daylight priority N/A
√Grouping Remote group "1-16" and set Rx signal for sensor
Diagrams
Dimension (unit: mm)
2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface 0
Function
2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface 1
Wiring
2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface 2
Installation instruction
2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface 3 2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface 4
Detection Range
2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface 5
Remote Control
MH15
2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface 6
MH17
2.4G Wireless Grouping PIR Motion Sensor, PWM Dimming, Zhaga book20 Interface 7
Initialization

After power on, the sensor automatically turns on light at 100% brightness and self-check for 45s-60s. During the initialization, the sensor is not able to detect movement. It enters sensing mode after initialization, and during which, the lamp maintains at 100% brightness.

Factory Setting

Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand-by period: 0s, Stand-by dim level: 10%

Application Notice
  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
  • PIR sensor can't penetrate any materials, please make sure no obstacle between sensor and moving people/object.
  • Sensor may hard to detect people if wear thick clothes in cold winter.
  • Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
  • Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice.
  • The dimming performance could be different when work with different 0-10V drivers.
  • The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
  • Detection distance is related to height of people, mounting height, mounting angle, working environment temperature and etc. When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or non-responsive. When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.
  • Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
  • This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).
  • When installing in new environment, please install and test at least 5pcs product firstly before mass installation.

PIR Application Considerations:

PIR is a pyroelectric infrared sensor that detects changes in infrared rays. Please pay attention to the following matters during actual use:

  • When detecting heat sources other than the human body
  • When the temperature of the heat source does not change or the heat source does not move
  • Other related environmental factors and violations of the PIR application principle impact

Potential False Triggering Scenarios:

  • When small animals enter the detection range
  • When far-infrared rays from sunlight, car headlights, incandescent lamps, etc. are directly exposed to the sensor
  • When the temperature in the detection range changes drastically due to warm air, cold air from cold greenhouse equipment, water vapor from humidifiers, etc.

Potential Non-Triggering Scenarios:

  • When there are substances such as glass and acrylic that block the transmission of far-infrared rays between the sensor and the detection object
  • The heat source within the detection range hardly moves or moves at high speed
